品牌:莱钢
型号:PFC
长度:12米
规格:全规格
起订:1吨
供应:1000吨
发货:1天内
立即购买

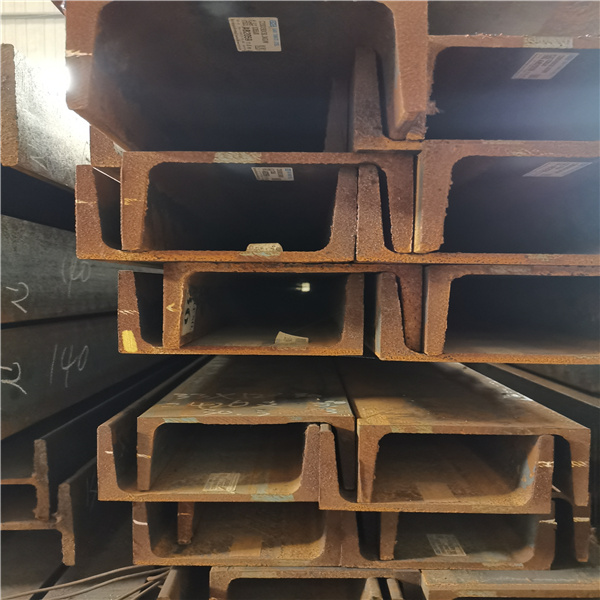

莱钢品牌英标槽钢各种型号规格材质S355J0现货：| 型号 | 理论重量 | 截面尺寸 | |||
| G(kg/m) | H | B | t(w) | t（f） | |
| PFC100*50*10 | 10.2 | 100 | 50 | 5 | 8.5 |
| PFC100*50*10 | 14.8 | 125 | 65 | 5.5 | 9.5 |
| PFC150*75*18 | 17.9 | 150 | 75 | 5.5 | 10 |
| PFC150*90*24 | 23.9 | 150 | 90 | 6.5 | 12 |
| PFC180*75*20 | 20.3 | 180 | 75 | 6 | 10.5 |
| PFC180*90*26 | 26.1 | 180 | 90 | 6.5 | 12.5 |
| PFC200*75*23 | 23.4 | 200 | 75 | 6 | 12.5 |
| PFC200*90*30 | 29.7 | 200 | 90 | 7 | 14 |
| PFC230*75*26 | 25.7 | 230 | 75 | 6.5 | 12.5 |
| PFC230*90*32 | 32.2 | 230 | 90 | 7.5 | 14 |
| PFC260*75*28 | 27.6 | 260 | 75 | 7 | 12 |
| PFC260*90*35 | 34.8 | 260 | 90 | 8 | 14 |
| PFC300*90*41 | 41.4 | 300 | 90 | 9 | 15.5 |
| PFC300*100*46 | 45.5 | 300 | 100 | 9 | 16.5 |
| PFC380*100*54 | 54 | 380 | 100 | 9.5 | 17.5 |
| PFC430*100*64 | 64.4 | 430 | 100 | 11 | 19 |
